SILICON TRI-CLOVER GASKET

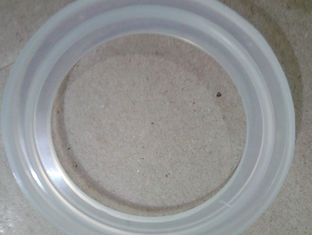

Silicon Tri Clover Gaskets are manufactured from Food, Medical Grade 100% silicone Rubber. Confirms to FDA 21 CFR 177- 2600 & USP class VI requirements. Shore Hardness 70 + 5 shore A or as per customers requirements Readily available with collar (for better grip) and also without collar. Available In Red I White / Transparent Silicone Rubber. Silicone tri clover gasket is available with collar (for better grip) and also without collar made-up from highest standard silicone rubber.

Also available in transparent silicone of highest standard.

  • Shore: 70 + 5 OR as per customers requirements

  • Conforms to FDA 21 CFR.111.2600

  • 100% pure silicone Transparent Rubber.

Silicone Tri-clamp Gaskets are available with collar for better grip and also without collar Conforms to USP Class VI Requirements Available in red / Orange / White & Transparent colours.

NOMINAL SIZE               D3          D4           D5

½”                                   34         27.5         10.9

¾”                                   34         27.5         15.4

1”                                     50.5      43.5         22.8

1.5”                                 50.5       43.5         35.8

2”                                    64           56            48.8

2.5”                                 77.5         70.5         60.5

3”                                     91           83            73.1

4”                                      118         110           96
